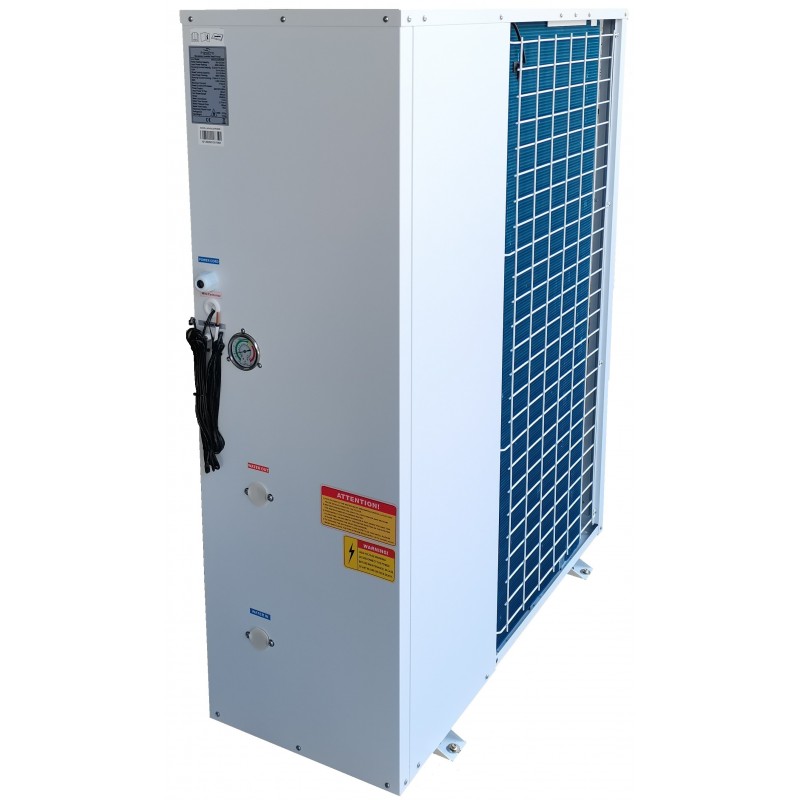

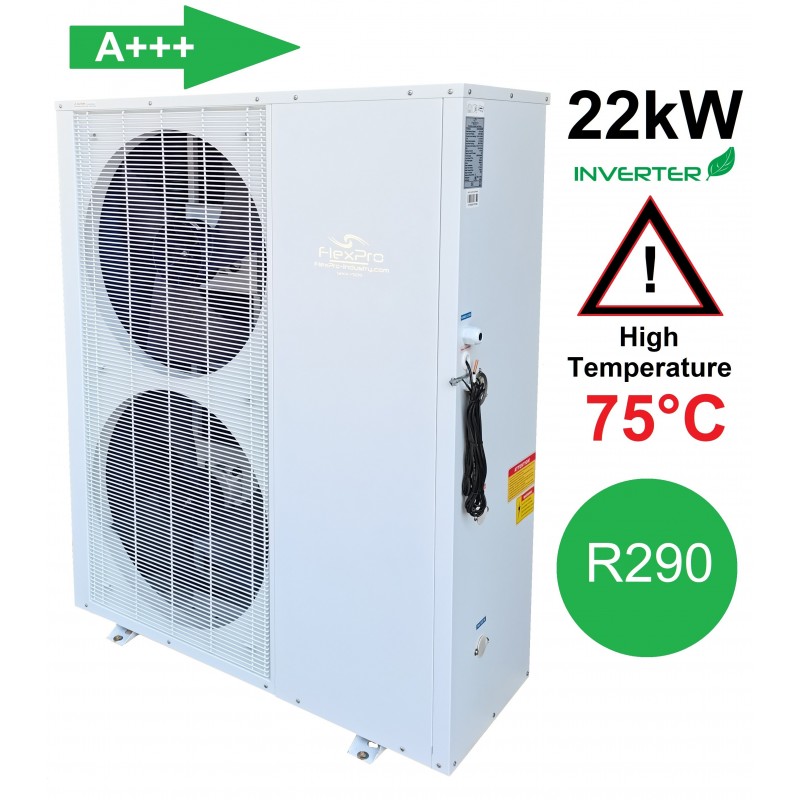

Air to water heat pump dc inverter R290 22kW

Technical data:

mode:
Capacity : from 8 to 22.00kW * max.
Power absorbed: 2 to 6.50kW

COP: 3.40-4

Chiller mode (option):
Capacity: from 4.20 to 15kW
Power absorbed: 1.80 to 7.30kW

EER: 2.05-2.30

Power supply: 220-240V/1ph/50-60Hz
Usage in use: 9.1 to 29.70A (220V)

Or Power supply: 380V/3ph /50-60Hz
Consumption in use: 3.2 * 3-10.4 * 3 (380V)

Water outlet temperature: 75°C
Operating temperature: -25 °C to 43 °C

Type: Inverter DC Inverter
Gas refrigerant: R290

Hydraulic connections: DN25
Noise level: 55dB (A) max.

Net dimensions: 1115 x 470 x 1250 mm
Net weight: 160kg

Package dimensions: 1200 x 480 x 1380 mm
Weight: 175kg

Warranty: 3 years parts and shipment.

*A7W35
A + + + @35° C
A + + @55° C
