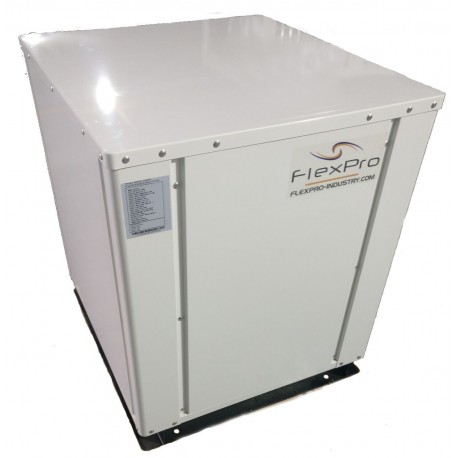

Water source heat pump 25kW (Geothermal)

Specifications:

Heating capacity: 25.00 kW
Power input (heating): 4.81 kW
Cooling capacity equivalent: 85,303 BTU/h

Cooling capacity: 16.35 kW
Power input (cooling): 3.52 kW
Cooling capacity equivalent: 55,788 BTU/h

Power supply: 380 V / 3 phase / 50 Hz

Rated current (heating): 7.30 A
Rated current (cooling): 5.34 A

Source water flow rate: 3.6 m³/h
Circuit water flow rate: 4.0 m³/h
Pressure drop: 33 kPa

Hydraulic connections: 1"

Maximum outlet hot water temperature: 55–60 °C
Chilled water production range: 7–12 °C

Compressor type: 1 × Scroll®
Refrigerant: R32 (pre-charged)
Heat exchanger: plate type

Operating sound level: 47 dB(A)

Warranty: 3 years

Test conditions:
Inlet water temperature: 15 °C
Hot water outlet temperature: 35 °C
Chilled water outlet temperature: 20 °C
