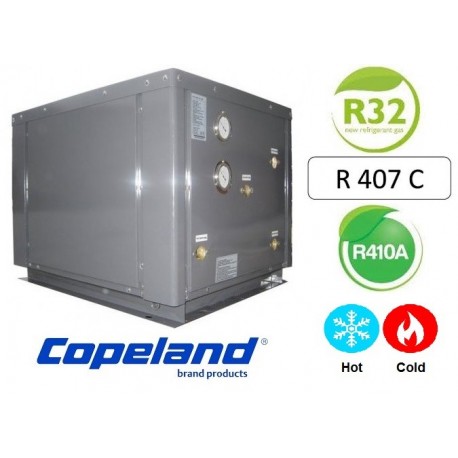

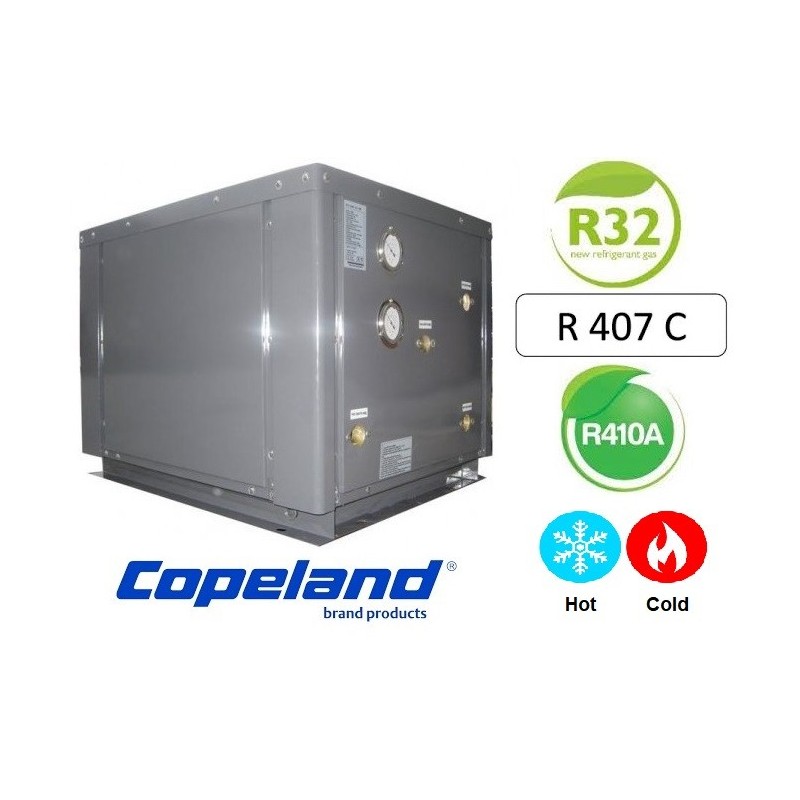

WATER/WATER HEATER PUMP 34KW

Technical data:

Technical data:

Power output (Heating): 34kW (38kW max.)
Power input (Heating): 6.8kW (8.8kW max.)
BTU/h: 116,012 (129,661 max.)

Power output (Cooling): 26.5kW (30.5kW max.)
Power input (Cooling): 7.6kW
BTU/h: 90,422 (104,070 max.)

Power supply: 380V / 3Ph / 50Hz
Consumption (Heating): 23.8A
Consumption (Cooling): 25A

Water flow rate (At source): 11 m3/h
Water flow rate (Circuit): 10 m3/h
Head loss: 50Kpa

Hydraulic connections: 1"

Hot water production: 55/60°C
Cold water production: 7-12°C

Compressor: SANYO® or COPELAND® Scroll
Refrigerant gas: R32 or R410A (Precharged)

Plate exchanger

Operating noise: 43dB(A)

Warranty: 3 years

*Test conditions:

Inlet water temperature: 15°C
Outlet hot water temperature: 55°C
Outlet cold water temperature: 20°C
