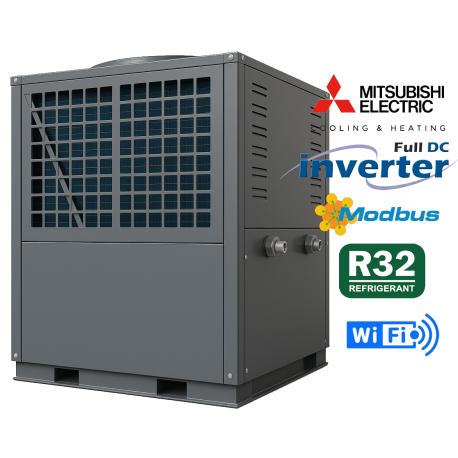

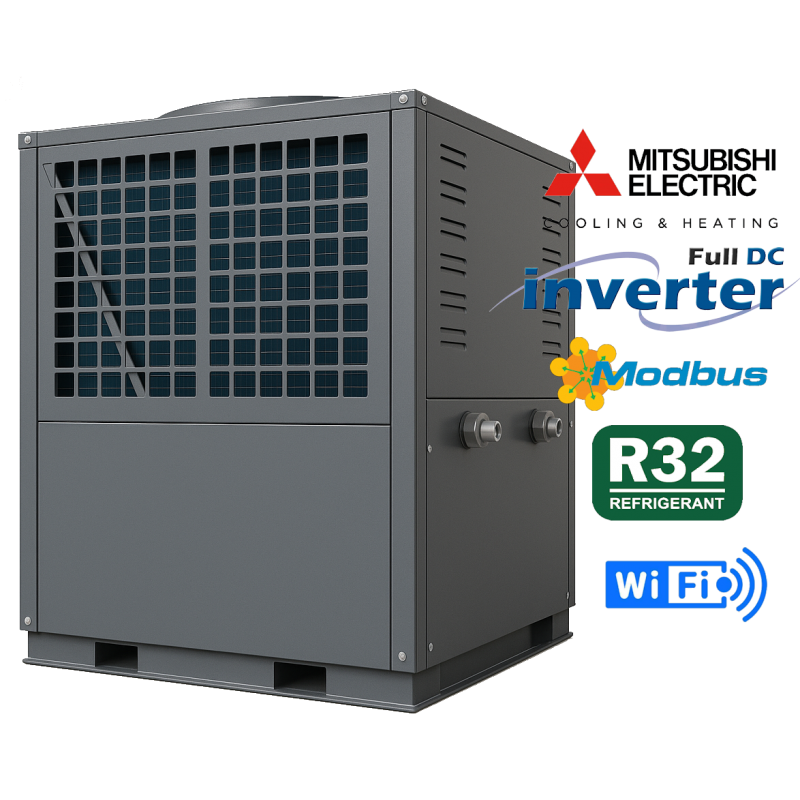

Swimming Pool Heat Pump Full Inverter AEPDC/76-R32 – 76 kW
AEPDC/76-R32
Novo produto
Full DC Inverter heat pump for swimming pools
– Model: AEPDC/76-R32
– Nominal output: 76 kW – Maximum: 103 kW
– For pools from 160 to 200 m³
– Mitsubishi high-efficiency compressor
– Wi-Fi
– 7” color touchscreen
– Modbus RS485
Delivery included – 3-year warranty – Unlimited Flexpro technical support
– Model: AEPDC/76-R32
– Nominal output: 76 kW – Maximum: 103 kW
– For pools from 160 to 200 m³
– Mitsubishi high-efficiency compressor
– Wi-Fi
– 7” color touchscreen
– Modbus RS485
Delivery included – 3-year warranty – Unlimited Flexpro technical support
Mais informação
Full DC Inverter Pool Heat Pump AEPDC/76-R32
76 kW (up to 103 kW)
The AEPDC/76-R32 heat pump uses advanced Full DC Inverter technology to deliver high-performance, energy-efficient, and quiet pool heating. It is ideal for pools from 160 to 200 m³.
Reliable Performance
- Maximum output: 103 kW (Air 26 °C / Water 26 °C / RH 80%)
- Nominal output: 76 kW (Air 15 °C / Water 26 °C / RH 70%)
Key Features
- Full DC Inverter technology – continuous variation of compressor and fan speed
- Mitsubishi Inverter compressor for high reliability
- Low noise operation – < 62 dB(A)
- Integrated 7” color touchscreen
- Wi-Fi remote control + built-in Modbus RS485 interface
- Titanium heat exchanger – excellent corrosion resistance
Technical Specifications
| Model | AEPDC/76-R32 |
|---|---|
| Recommended pool volume | 160 – 200 m³ |
| Power supply | 380V / 3Ph / 50Hz |
| Heating (Air 26 °C / Water 26 °C / RH 80%) | 103 ~ 24.8 kW |
| Power consumption | 14.80 ~ 1.54 kW |
| COP | 16.09 ~ 6.96 |
| Heating (Air 15 °C / Water 26 °C / RH 70%) | 76 ~ 18.3 kW |
| Power consumption | 15.29 ~ 2.42 kW |
| COP | 7.55 ~ 4.97 |
| Cooling (Air 35 °C / Water 27 °C) | 58 ~ 14.1 kW |
| Power consumption | 15.89 ~ 2.11 kW |
| EER | 6.68 ~ 3.65 |
| Nominal power input | 15 kW |
| Nominal current | 27 A |
| Max. power input | 22 kW |
| Max. current | 38 A |
| Airflow | 12,200 m³/h |
| Water flow | 30 m³/h |
| Hydraulic connection | 63 mm |
| Heat exchanger | Titanium |
| Electronic expansion valve | EEV |
| Airflow direction | Vertical |
| Operating temperature range | -15 °C to +43 °C |
| Heating temperature range | 15 °C to 40 °C |
| Cooling temperature range | 8 °C to 28 °C |
| Noise level | < 62 dB(A) |
| Unit dimensions (W × D × H) | 1250 × 1080 × 1870 mm |
| Packing dimensions | 1300 × 1100 × 1950 mm |
| Net weight | 420 kg |
| Gross weight | 460 kg |
Delivery & Warranty
3-year warranty. Unlimited technical support provided by Flexpro.
