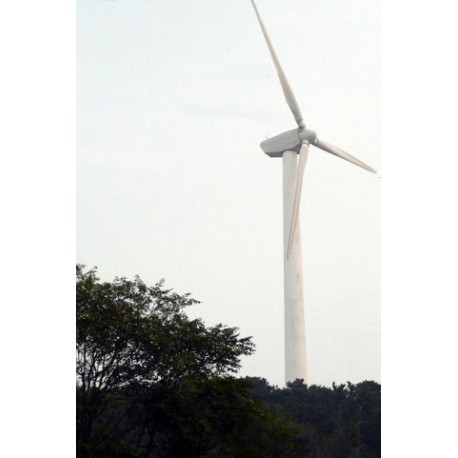

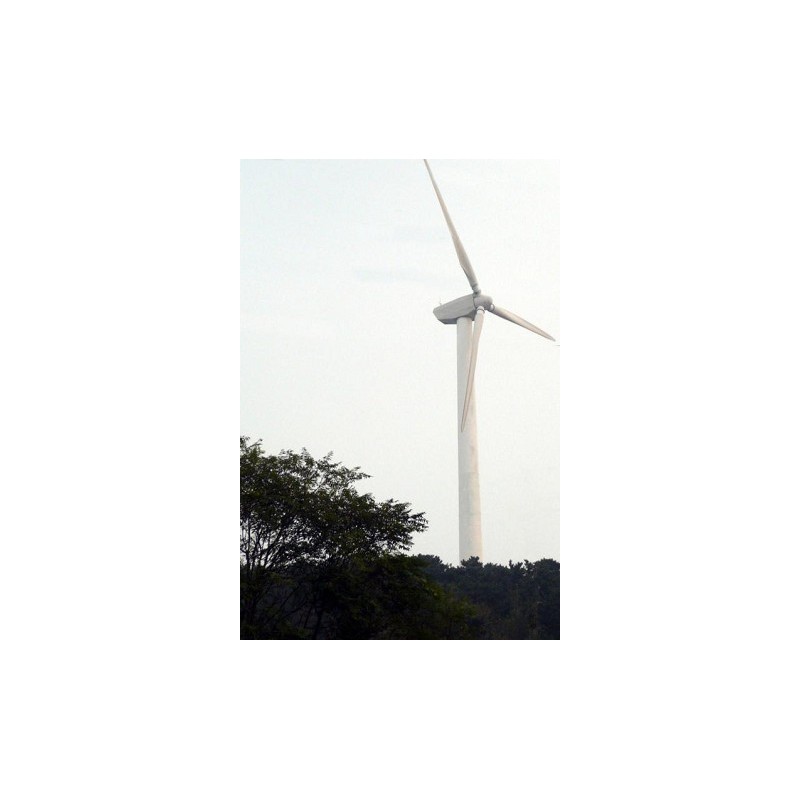

Wind turbine 100kW (on grid and off grid)

SPECIFICATIONS:

Rated power: 100 000 W (12m/s)
Maximum capacity: 120,000 W
Average annual production: 219,000kWh

Rated voltage: 360V

Start speed: 3m/s
Speed of operation: 3-50m/s
Security speed: 50m/s
Maximum rotation speed: 60t/min

rotor diameter: 24m

Generator: permanent magnets

Height of holder 18m or 20m

Kit including:

Network Attached Version

• 1 100kW/360V generator
• 3 Pales,
• 1 100kW MPPT AC380V ~ 415V
• 1 Hybride 100kW on network connection with 415V
  (Protection: surcharge, short circuit, discharge, etc. ..)
• 1 RS485 communication interface
• 1 Mat 20 meters (3 sections)
• 1 Instruction and User Manual.
• 800 metres of 16mm² cable
• 100 meters of 25mm²
• A 300A

  switch

-network version (autoproduction)

• 1 100kW/360V generator
• 3 Pales,
• 1 100kW MPPT load controller AC380V ~ 415V
• 1 Off Grid 100kW/360V 380V Off Grid Ondulator
• (Protection: surcharge, short circuit, discharge, etc. ..)
• 1 RS485 communication interface
• 1 Mat 18 meters (3 sections)
• 1 Instruction and User Manual.
• 800 metres of 16mm² cable
• 100 meters of 25mm² cable

Optional Batteries: Slow load, solar/wind special

without maintenance, freeze 12V200Ah (64pcs)
Battery cables 16mm2 * 35cm (96pcs)
Battery cables 16mm2 * 1m (6pcs)
Connectors

Volume on shipment:

Network Attached Version:
Total Volume: 40 m3
Total Weight: 15 925kg

Self-Production Version:
Total Volume: 119 m3 (with batteries)
Total weight: 29 600kg

Warranty:

Generator: 5years
Controler and Ondulator: 3yr
Batteries (option): 3ans (approx. 8years)

Wind life: 25 years
