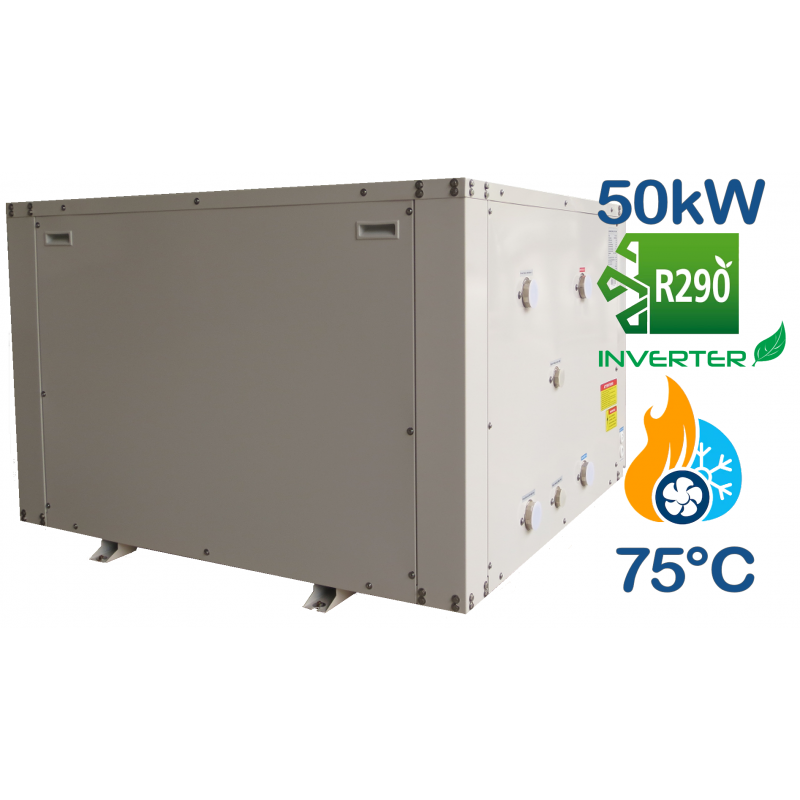

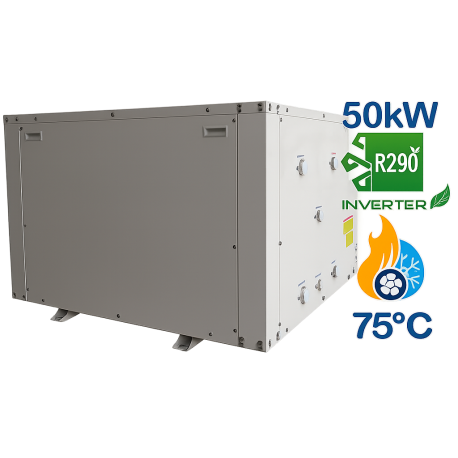

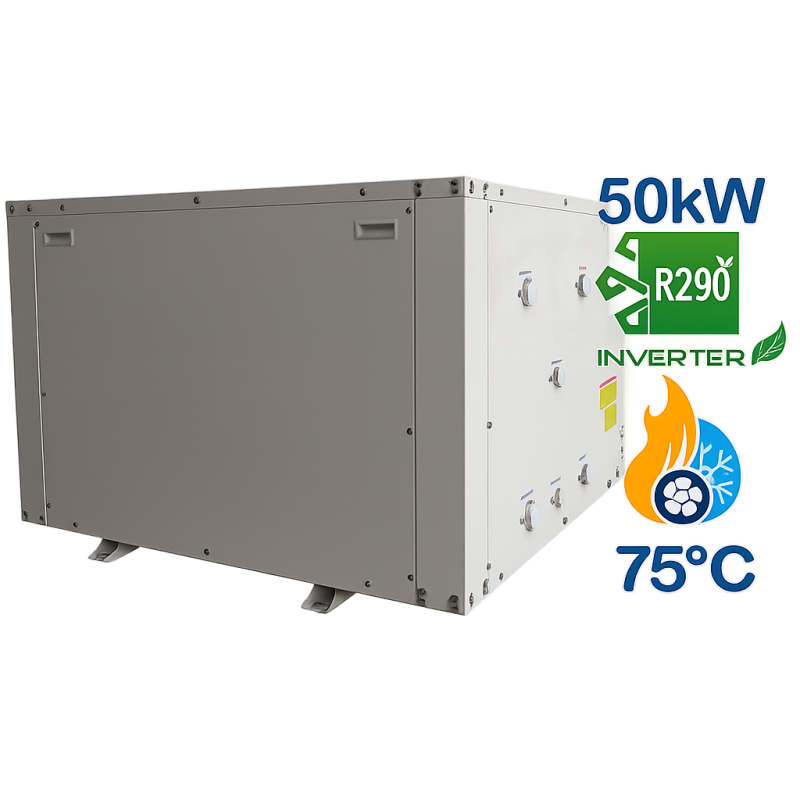

Water-to-water heat pump 50kw R290 (Geothermal)

Technical data*:

Capacity: 17 to 50kW max.*
Power consumption: 3.7~12.2kW
BTU/h : 170 500
COP: 4.1 to 4.6 max

Cooling option:

Capacity: 15.5 to 47kW max.
Power consumption: 4.3 to 15.2kW
BTU/h : 160 300
EER: 4 to 4.5 max

Power supply: 380V/3ph/50Hz

Heating consumption: 6.3*3 to 18.7*3A
Cooling consumption: 19.5*3A

Water flow rate: 9.7m3/hour

Hydraulic connections: DN50

Max temperature: 75°C
Min cold water temperature: 3°C (reversible option)

Compressor: Hitachi®
Refrigerant: R290

Operating sound pressure: 50db

Net dimensions: 120cm x 120cm x 82cm
Net weight: 250Kg

3-year warranty

*Test conditions:

Water source temperature (geothermal): 0°C
Hot water temperature at heat pump outlet (heating): 35°C
