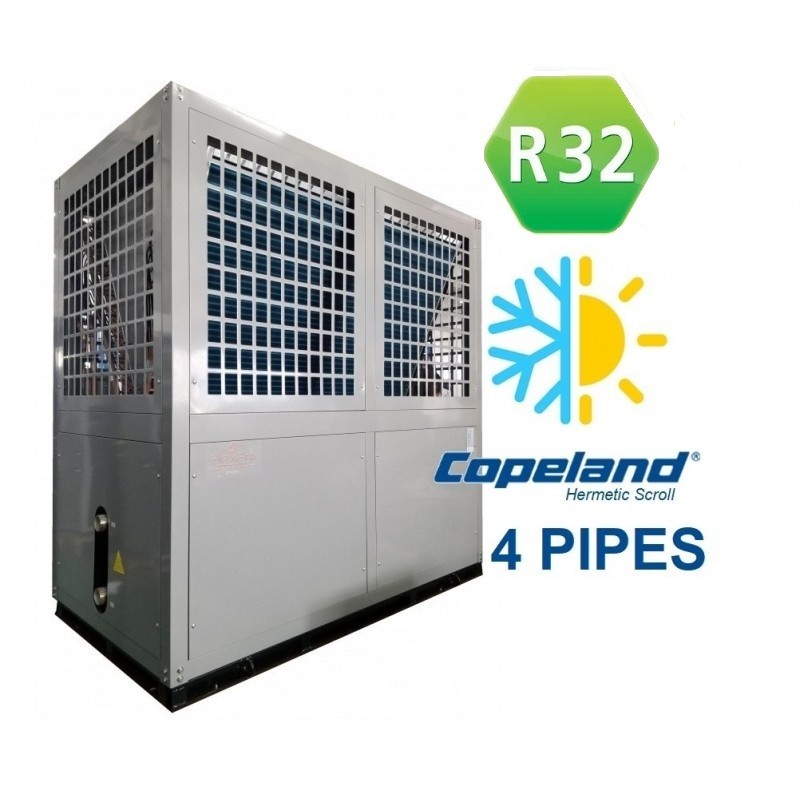

4-Pipe Heat Pump 105 kW – Simultaneous Heating & Cooling – Model AEH4P/105

4-Pipe Heat Pump AEH4P/105

105 kW cooling capacity for your HVAC projects.

The AEH4P/105 heat pump is a high-efficiency 4-pipe solution, designed to simultaneously provide heating and cooling for commercial buildings. Its robust design, dual scroll compressors, and quiet operation make it ideal for demanding professional installations.

✔️ Simultaneous heating and cooling

Thanks to its two independent circuits, this heat pump can heat some areas while cooling others. It is especially recommended for hotels, hospitals, offices, educational facilities, or multi-residential buildings.

✔️ Certified performance

• Nominal cooling capacity: 105 kW (30 USRT)
• Nominal heating capacity: 129 kW (37 USRT)
• Electrical consumption: 50 kW
• Combined capacity (heating + cooling): 132 kW heating / 105 kW cooling
• Refrigerant: R32 – charge 2 x 12 kg
• Compressor type: Hermetic scroll (x2)

✔️ High-performance exchangers

• Chilled water exchanger: Shell & tube – flow 18.1 m³/h – DN65 – 50 kPa
• Hot water exchanger: Plate heat exchanger – flow 22.7 m³/h – DN65 – 55 kPa

✔️ Optimized ventilation

• Axial fans – 2 units
• Total airflow: 39,900 m³/h
• Fan power consumption: 3.6 kW

✔️ Power supply and installation

• Power supply: 3-phase – 380 V / 50 Hz
• Direct start
• Max absorbed power: 50 kW
• Max current: 153 A

✔️ Dimensions and weight

• Dimensions (L x W x H): 2260 x 1250 x 2375 mm
• Net weight: 1316 kg

Key advantages

• Simultaneous heating and cooling on 2 independent circuits
• Perfect for multiservice projects: hotels, healthcare, commercial sector
• Modbus compatible (optional)
• Eco-friendly R32 refrigerant with low GWP
• Delivered on pallet with plywood protection, professional installation required
