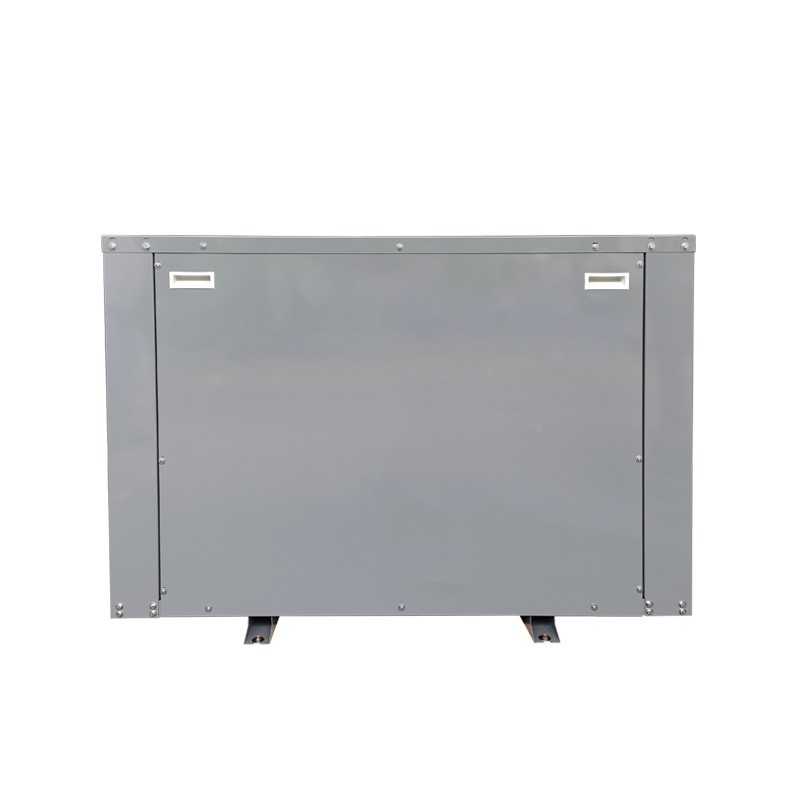

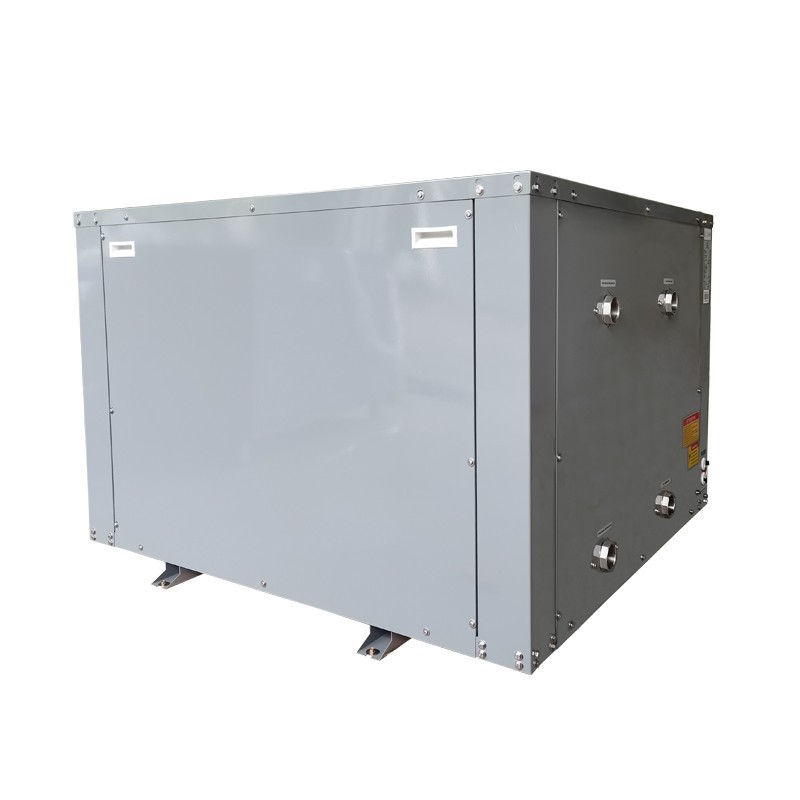

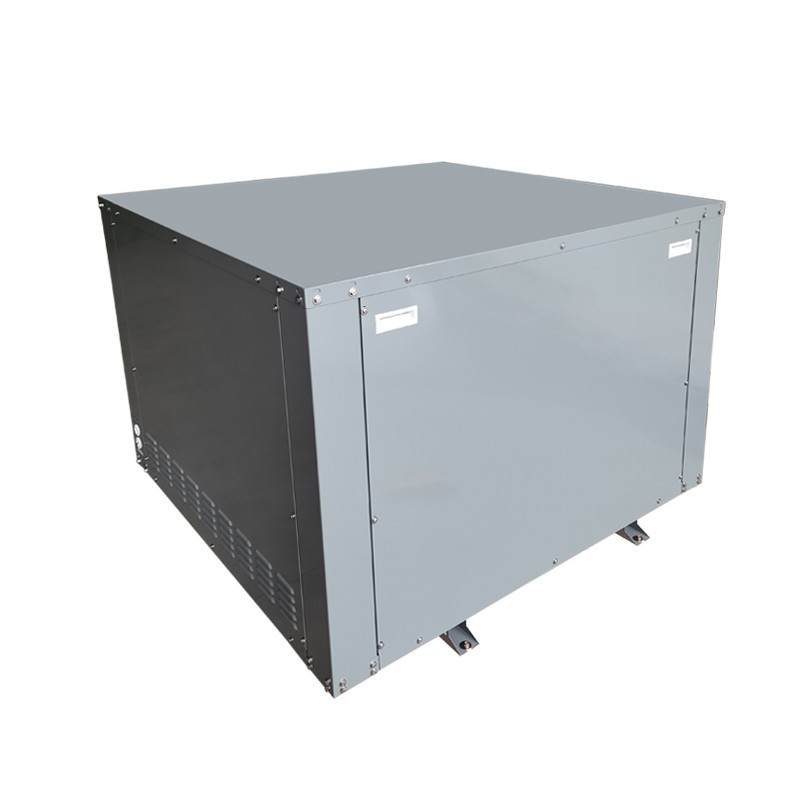

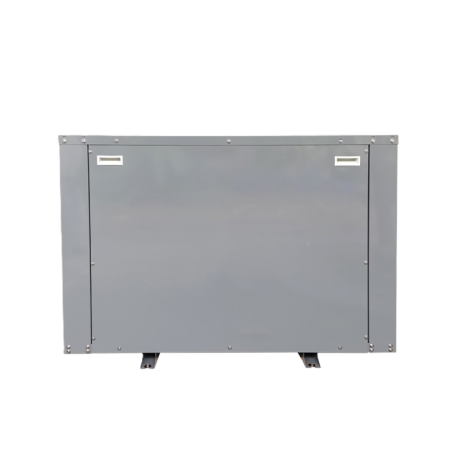

Water source heat pump EEHDC/50-R32 – 59.8 kW – R32

The EEHDC/50-R32 water source heat pump is designed to meet demanding heating and domestic hot water needs. Equipped with a Panasonic or Mitsubishi compressor and using R32 refrigerant, this unit ensures high energy efficiency while complying with modern environmental standards.

Its high-efficiency plate heat exchanger allows it to achieve a COP of 5.2, ensuring optimized energy consumption. This model is ideal for hotels, hospitals, commercial buildings, industrial facilities, or any project requiring stable and continuous heat production.

This product is offered with VAT included and home delivery.

Technical specifications

Model: EEHDC/50-R32
Heating capacity: 36.6 – 59.8 kW
Cooling capacity: 20.8 – 34.8 kW
Heating input power: 6.95 – 11.5 kW
Rated current (heating): 30 A
Outlet water temperature: 55°C
COP (Coefficient of Performance): 5.2
Power supply: 380 V / 3-phase / 50 Hz
Noise level: 58 dB(A)
Dimensions (W x D x H): 1050 x 810 x 760 mm
Packing size: 1140 x 900 x 910 mm
Net weight: 165 kg
Refrigerant: R32
Compressor brand: Panasonic or Mitsubishi
Number of compressors: 1

Source side heat exchanger

Type: Plate heat exchanger
Water flow: 15,000 L/h

Load side heat exchanger

Type: High-efficiency tube exchanger
Water flow: 12,000 L/h
Pressure drop: 45 kPa
Pipe size: DN50
