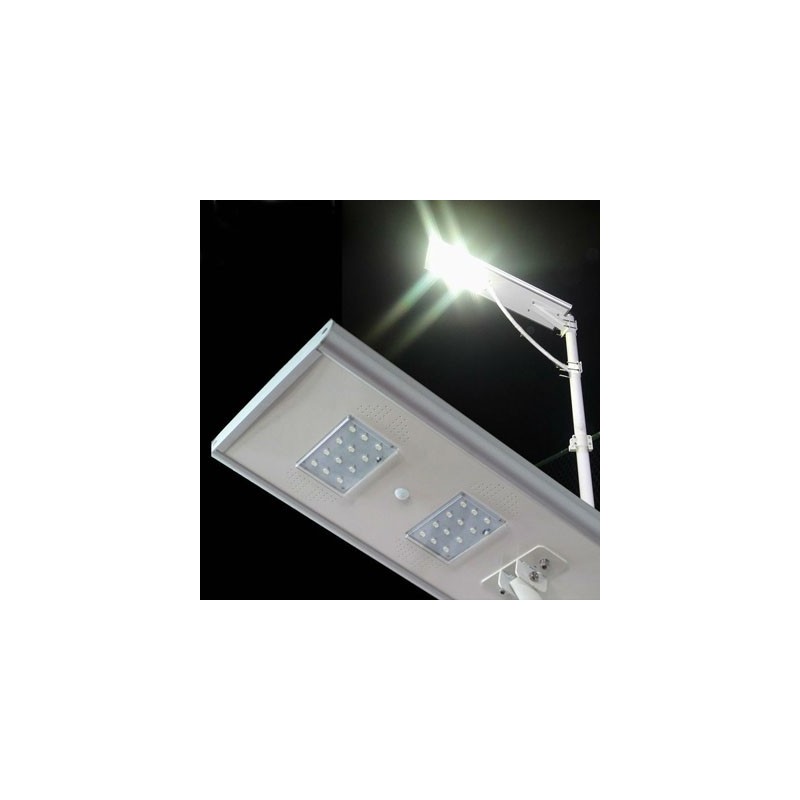

Solar lamp LED 10W solar panel with integrated
LMPI/10
New product
Solar LED floor lamp 10W solar panel with integrated.Integrated all-in-one solution LED + PV solarBuilt-in 50W solar panelIncluded solar battery Lithium Lifepo4Lighting LED 10W power high powerEclarage automatic (programmable)Motion detectorIntegrated MPPT charge controllerIdeal for lighting streets, parking lots or replacement of traditional lampposts.
More info
Technical specifications
Structure:
Materials treated lacquered aluminium anti corrosion
Grey
-Supplied with mounting mast or wall bracket
-Operating temperature:-30 ° to + 70 °
-Height of installation 7-8 m
-Distance between lamps 18-20 m
-Diameter of 10-15 m ground lighting
-Waterproof IP 65
-CE, Rohs certifications
Solar panel :
-Type monocrystalline solar panel
-Nominal power 50 Wc
-Voltage 18V
-More than 25 years life expectancy
Battery
-Type Lithium-iron phosphate 24A, 12.8 V voltage
-More than 2000 cycles life expectancy, 5 years.
-Battery discharge rate: less than 20% for one year of storage
Infrared detector
-Detection distance: 5-7 ml
-Detection angle: below 140 °
LEDs
-Type chip bridgelux
-Number of leds: 40
-Lifetime: 50 000 to 100 000H
-Tint 4000 ° K / CRI > 75
-Illuminated surface: 120 °, diameter 10-15M
-Brightness: 850lm full load
: 500lm energy saving
Dimensionshead: 1150 X 325 X 430 mm
Net weight: 19 kg
The pole dimensions: 3500 x 400 x 400mm
Net weight: 78.5 kg
-Auto-adaptive lighting control
-Programming tracks hourly + update on/off
-Configurable power saving mode.
Autonomy: 70 hours under full load
210 hours mode eeconomy of energy
Operating temperature:-20 ° C to 40 ° C
