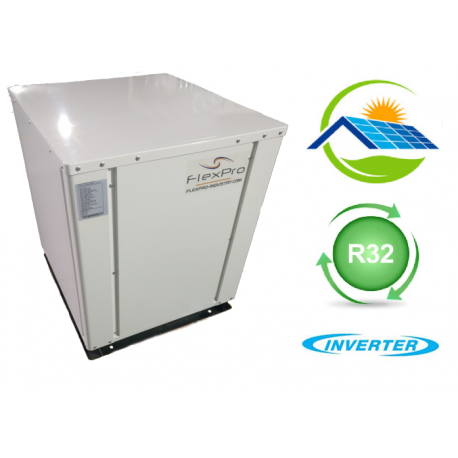

Water source solar hybrid heat pump 16kw

Specifications:

Capacity: 16kW*
Rated power: 1.18~3.9kW
BTU/h : 54 580
COP: 4.60 max

Power supply: 220~240V/1ph/50-60Hz

Running current: 5.4 to 18A

Water flow: 3.6m3/h

Water connection: DN25 (25mm)

Water output temp.: 55°C max
Cold water output temp.(mini.): 3°C (cooling option)

Compressor : Panasonic®
Refrigerent gas: R32

Sound pressure: 50db(A) @2m

Net dimensions: 90cm x 85cm x 88cm
Net weight: 136Kg

Warranty:  3 years

Recommended total solar panels power  : 6500W

*Testing condition:

Water source T° (geothermal side) : 0°C
Water output T°(heating) : 35°C
