> >>On-Grid Solar Inverter 3kW (VDE126)

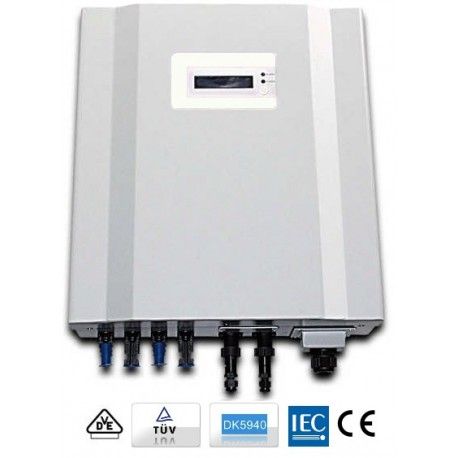

UPS network solar 3kW (Controller) View larger

On-Grid Solar Inverter 3kW (VDE126)

FPS/3KW-B

New product

On grid Inverter 3kW

  • Compact size and high power
  • High speed MPPT for real time power tracking and improved energy harvesting
  • Transformerless design to get maximum efficiency: 97.2%
  • High overload capacity (until 3.4kW)
  • Grid connection according to international standards
  • True sine wave output
  • RS-232 serial communication
  • Multi-language display.

More details

850,00 €

Price including VAT + Shipping included

Add to wishlist

Alert me when price drops

More info

Specifications:


Input Data: DC

Max DC Power: 3660W
Max DC Voltage: 500Vdc
MPPT Operating range: 100-450Vdc
Parallel inputs: 2
MPPT Trackers: 1
Max. input current (total): 20A

Output Data: AC

Nominal output power: 3000W
Max. output power: 3400W
Nominal output current: 13A
Max. output current: 15.7A
Nominal AC voltage: 230Vac
AC Voltage range: 190-265Vac
Nominal AC grid frequency: 50Hz
AC grid frequency range: 50Hz (+/-5)
Power Factor: >99
Harmonic distortion (THD): <3% (at nominal output power)

Efficiency:

Max. efficiency: 97.2%
Euro efficiency: 96.4%
MPPT efficiency: 99.6%

General data:

Dimensions (W*D*H): 345*165*384mm
Net weight: 17Kg
Operating temperature range: -25°C to +60°C
Operating noise: <25 dB(A)
Power consumption at night: 0W
Electrical isolation: Transformer-less
Cooling system: Passive
IP Code: IP65
Communication: RS-232 (RS-485 optional)

Certification:

VDE 126-1-1
EN-50178 / EN-61000
DK5940 / AS4777
IEC 62109-1 / 62109-2
C.E
