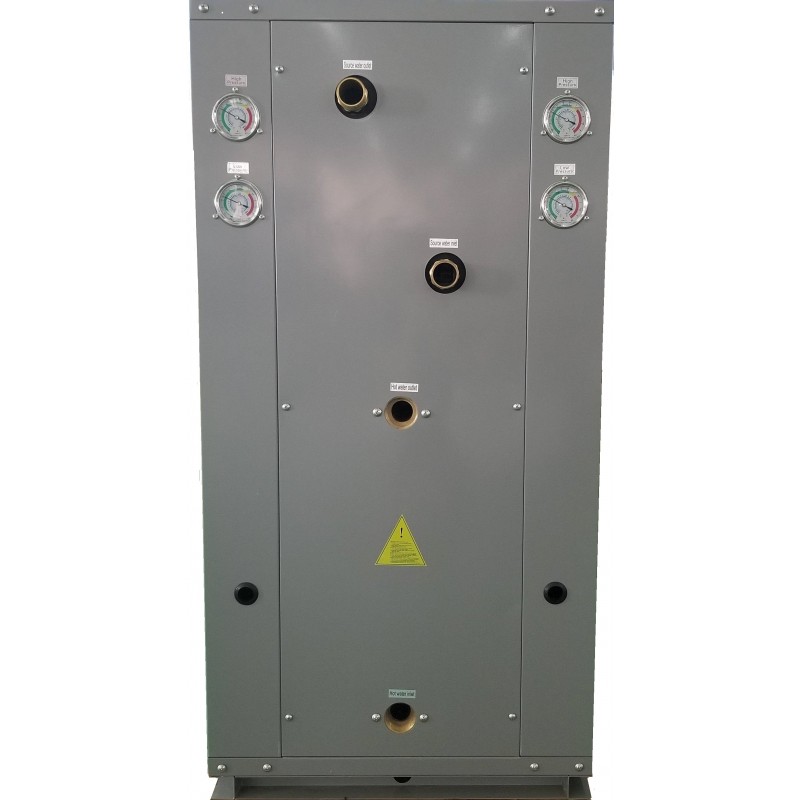

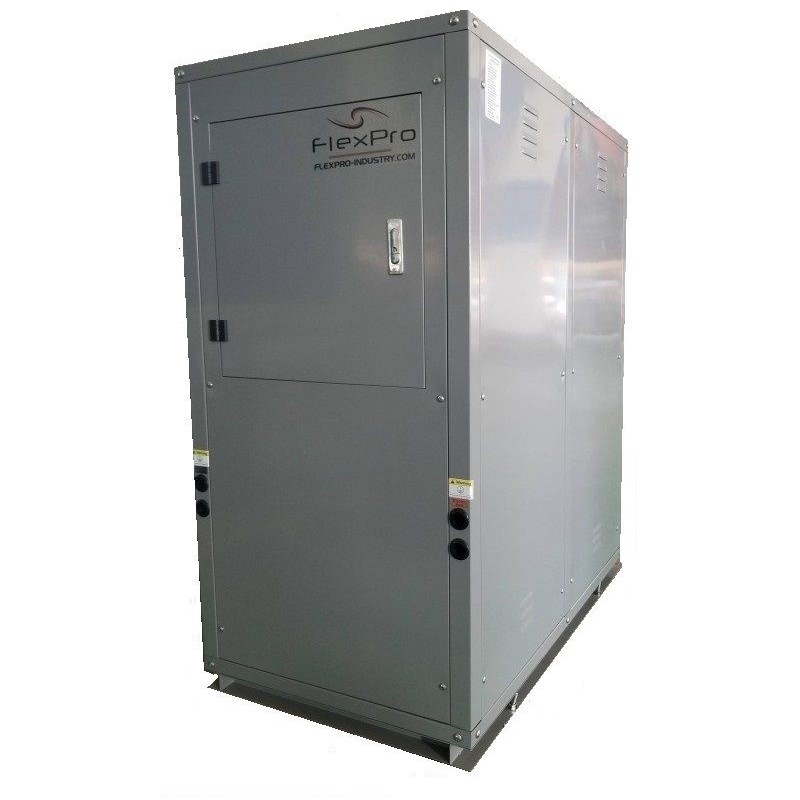

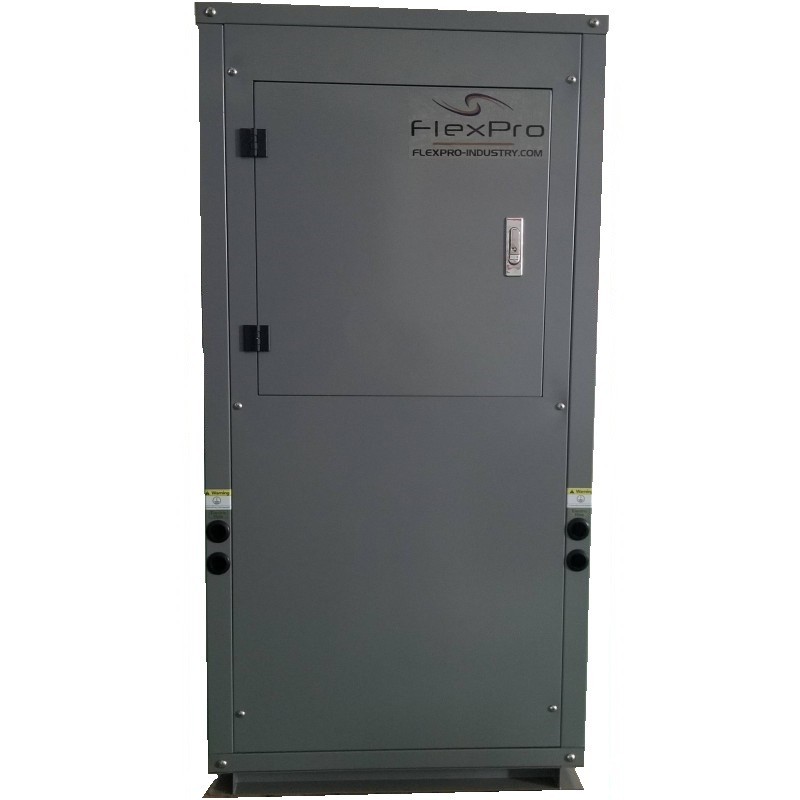

water source heat pump 50kW (geothermal)

Technical data:

Restored power (hot): 50.4kW
Absorbed power (hot): 9.84kW
COP: 5.12
BTU/h: 171 971

(Cold) restored power: 33kW
Power consumption (cold): 6.8kW
COP: 4.85
BTU/h: 112 600

Power supply: 380 ~ 415V / 3Ph / 50 Hz
Power consumption: 25A hot  / 17A cold

Water flow (at the source): 9.1 m3/h
Water flow (Circuit): 6.2 m3/h

Hydraulic connections: 32mm

Production hot water: 60 ° C
Cold water production: 7-12 ° C

Compressor: COPELAND ® (ZW72KAE)
Number of compressor (s): 1
Gas refrigerant: R410A (preload)

Noise in operation: 50dB (A)

NET dimensions (mm): 1040 x 600 x 1200
Pack (mm) dimensions: 1090 x 705 x 1560
Net weight: 370kg
Total weight: 400kg

Warranty: 36 months

* Test conditions:

Hot:

Temperature water input source: 10 / 15 ° C
Temperature of the hot water output: 50 / 55 ° C

Cold:

Source of inlet water temperature: 25° C
Cold water output temperature: 15°C
