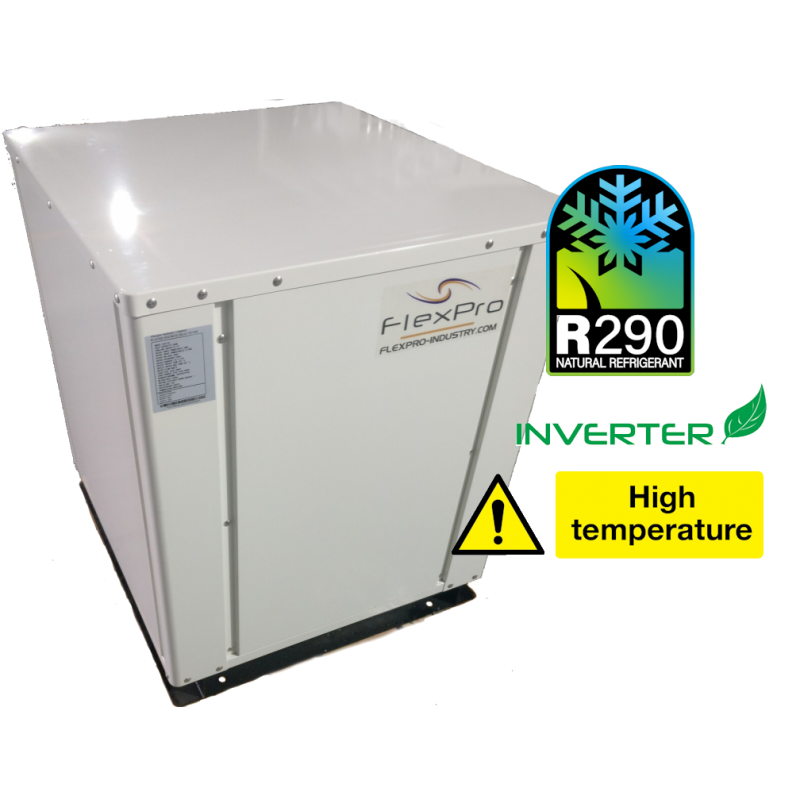

Water source heat pump 16kw inverter (R290)

Main specifications:

Heating capacity: 16kW*
Rated power: 1.18-3.90kW
Running current: 1.9*3-6.3*3A
BTU/h max.: 54 580
C.O.P: 4.1-4.6

Cooling capacity: 5.4-16.20kW
Rated power: 1.20-4.10kW
Running current: 2*3-6.6*3A
BTU/h max.: 55 250
E.E.R: 4-4.5

Max input current: 13*3A
Rated power max: 7kW

Power supply: 380V/3ph/50hz

Outlet water temperature max.: 75°C
Outlet water temperature min.:   3°C

Compressor: 1x
Type: DC Inverter
Refrigerant gas: R290

Water piping connection: DN25 (1")
Water flow (heating): 2.80m3/h
Water flow (cooling): 3.60m3/h
Heating pressure drop: 50kpa
Cooling pressure drop: 50kpa

Net dimension: 900 x 853 x 885 mm
Net weight: 145kg


*Testing condition:
Water source side temperature: 0°C
Heating side temperature: 35°C
