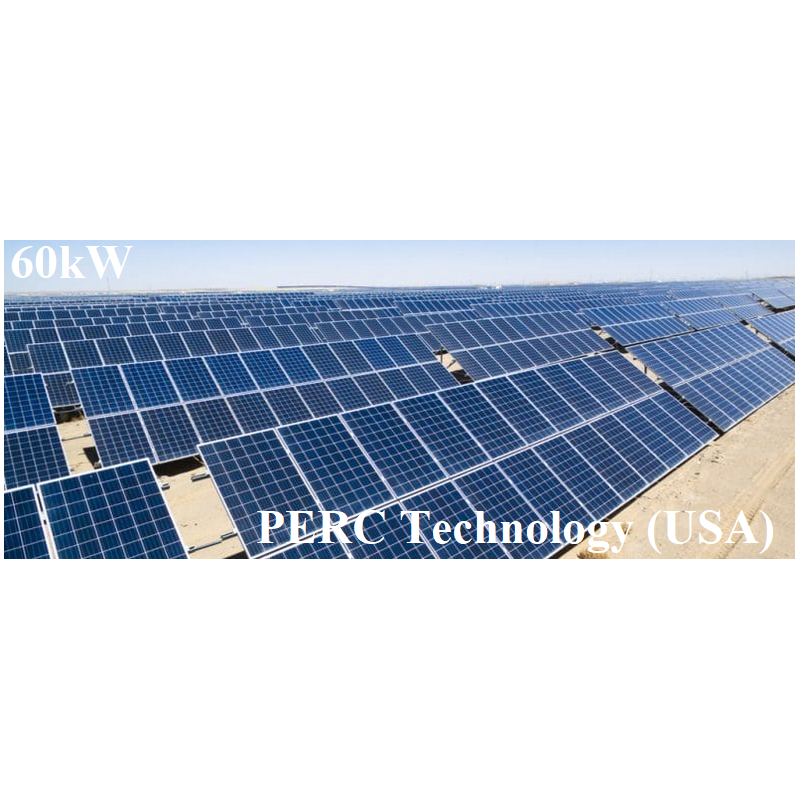

60kW photovoltaic self-consumption solar station

Technical data of a solar panel:

Module type: Monocrystalline

Peak power: 500 watts,

Optimal operating current (Imp): 12,14A

Open circuit voltage (Voc): 49,42V

Optimal operating voltage (Vmp): 41,18V

Net dimensions: 209cm X 110,6cm X 3,5cm,

Junction box supplied + IP65 + MC4 connectors

Frame: Universal anodized aluminum frame.

Lifespan: 25 years minimum.

Warranty: 15 years

Certificates：CE, TUV

Inverter technical data:

Power: 60kW / 360VDC

Voltage: 110V - 240V

Output: 220-415VAC 50/60hz

Function: wifi

Protections: Overcharge, Discharge, Overdischarge

2 years warranty

Controller technical data:

True MPPT: 360V/60A

Charging efficiency: 99,9%

Smart load control

Several levels of protection

Fixing brackets for flat or sloping roof:

Wind resistance: 55m/s

Resistance to snow: 1.5kn/m²

Structure: Stainless Steel + Aluminum

Angle adjustable

Accessories:

4mm²*500m Solar PV Cables

MC4 connectors

2 x 150A box for protection against lightning and thunder

25mm² x 100m battery cables included

Batteries:

Solar 12V600ah

Lifespan: 10 years

Dimensions: 32cm x 19cm x 39cm

Total volume: 26m3

Total weight: 11,000kg

Suitable for a daily energy demand of 362KWH
