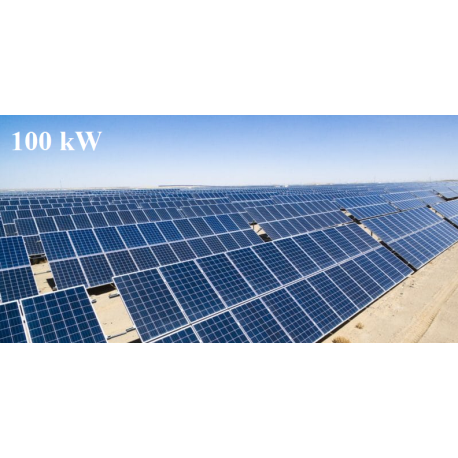

100kW photovoltaic self-consumption solar station

Technical data of a solar panel:

Module type: Monocrystalline

Peak power: 300 watts,

Optimal operating current (Imp): 8.72A

Open circuit voltage (Voc): 43.2V

Optimal operating voltage (Vmp): 34.4V

Net dimensions: 195cm X 99.2cm X 3.5cm,

Junction box supplied + IP65 + MC4 connectors

Frame: Universal anodized aluminum frame.

Lifespan: 25 years minimum.

Warranty: 15 years

Certificates：CE, TUV

Inverter technical data:

Power: 100kW / 384VDC

Voltage: 110V - 240V

Output: 220-415VAC 50/60hz

Function: wifi

Protections: Overcharge, Discharge, Overdischarge

2 years warranty

Controller technical data:

True MPPT: 384V/100A

Charging efficiency: 90-95%

Smart load control

Several levels of protection

Fixing brackets for flat or sloping roof:

Wind resistance: 55m/s

Resistance to snow: 1.5kn/m²

Structure: Stainless Steel + Aluminum

Angle adjustable

Accessories:

4mm²*400m Solar PV Cables

MC4 connectors

2 384V box for protection against lightning and thunder

16mm² battery cables included (battery option)

Batteries:

Solar 12V200ah

Lifespan: 6-8 years

Dimensions: 52cm x 24cm x 21cm

Weight: 59kg

Total volume: 40m3

Total weight: 25,000kg

Suitable for a daily energy demand of 432KWH
