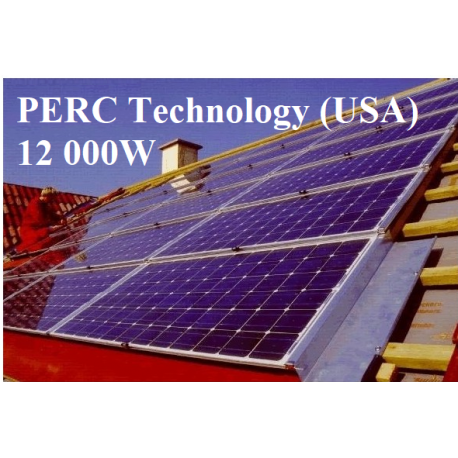

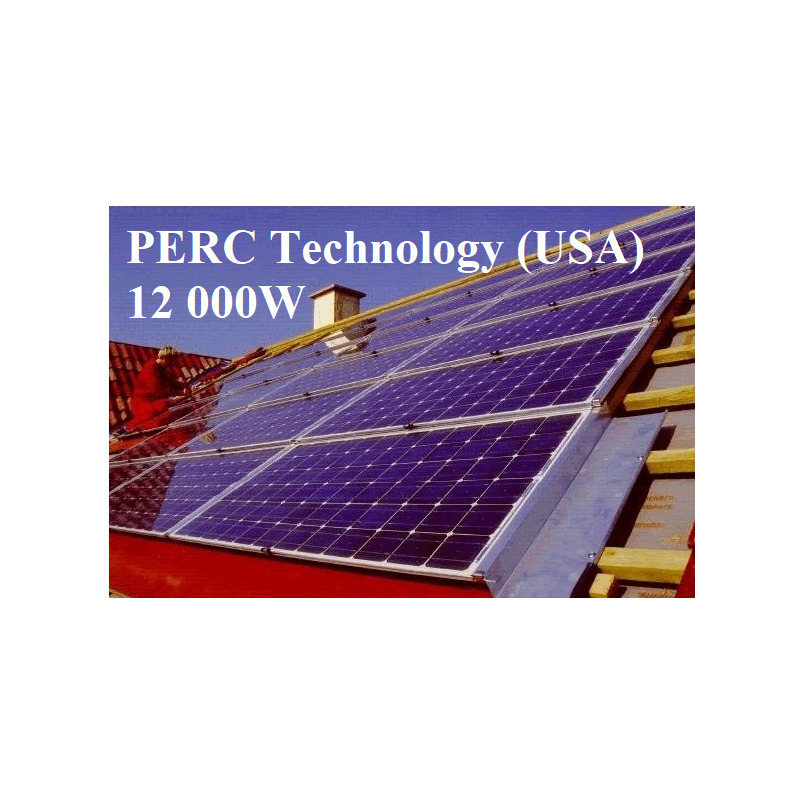

12kW Photovoltaic PERC off-grid solar kit

Technical data of a solar panel:

Module type: Monocrystalline, 210x210 cells

Technology: PERC

Efficiency: 20.54%

Peak power: 450 Watts,

Optimal operating current (Imp): 12.21A

Open circuit voltage (Voc): 44.22V

Optimal operating voltage (Vmp): 36.86V

Net dimensions: 214.8cm X 96cm X 3.5cm,

Weight: 20kg/piece,

Junction box supplied + IP65 + MC4 connectors

Frame: Universal anodized aluminum frame.

Lifespan: 25 years minimum.

Warranty: 15 years

Certificates：CE, TUV

Inverter technical data:

Power: 12kW / 96VDC

Voltage: 110V - 240V

Output: 220VAC

Function: wifi

Protections: Overcharge, Discharge, Overdischarge

2 years warranty

Controller technical data:

True MPPT: 192V/80A

Charging efficiency: 99.9%

Input max. permissible: 800V

Smart load control

Several levels of protection

Fixing brackets for flat or sloping roof:

Wind resistance: 55m/s

Resistance to snow: 1.5kn/m²

Structure: Stainless Steel + Aluminum

Angle adjustable

Accessories:

4mm²*150m Solar PV Cables

MC4 connectors

1 protection box consisting of two 100A circuit breakers

16mm² battery cables included (battery option)

Total volume: 5.5m3
Total weight: 1700kg

Suitable for a daily energy demand of 75.6KWH
