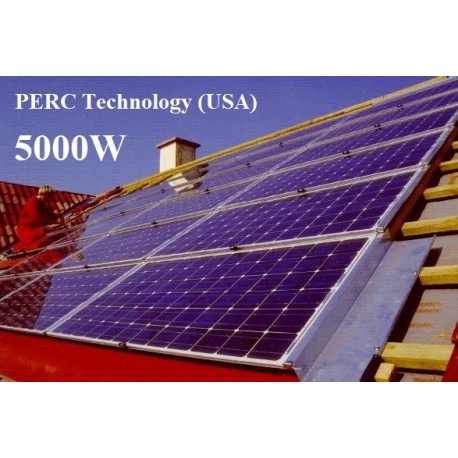

5kW photovoltaic PERC on grid View larger

5kW PERC photovoltaic kit for grid injection

k5kwfr/500

New product

Kit including:

  • 10x 500W PV with PERC technology (USA)
    (CE + TUV certified) 15 year warranty
  • 1x VDE126 compliant 5kW grid solar inverter
    (For EDF resale) 5-year warranty
  • WiFi function
  • Adjustable angle mounting brackets tested against wind at 55m / s
    snow up to 1.5kn / m²
  • Cables 4mm² (100m)
  • Total power: 5000Wp

More details

6 590,00 €

Price including VAT + Shipping included

Add to wishlist

Alert me when price drops

More info


Technical data of a solar panel *:

Module type: Monocrystalline,

Peak power: 50 0 Watts,

Optimal Operating Intensity (Imp): 12.14A

Open Circuit Voltage (Voc): 49.42V

Optimal operating voltage (Vmp): 41.48V

Net dimensions: 214.8cm X 108cm X 3.5cm,

Weight: 25kg / piece,

Junction box supplied

Frame: Universal anodized aluminum frame.

Lifespan: 25 years minimum.
Guarantee: 15 years

Certificates : CE, TUV
Efficiency: 21.45%

Inverter data:

Power: 5kW

MPPT: 180-450V

Max voltage input: 500V

Number of MPPs: 1

DC input number: 1

Output voltage: 190 to 270V

Com interface: RS845

Dimensions: 450 x 405 x 190mm

Wifi function
