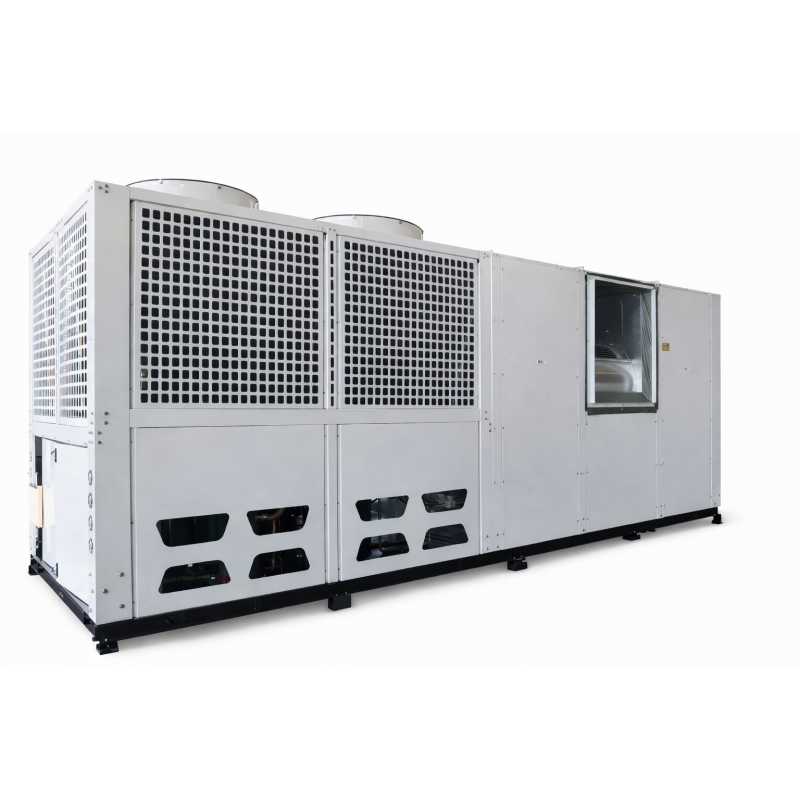

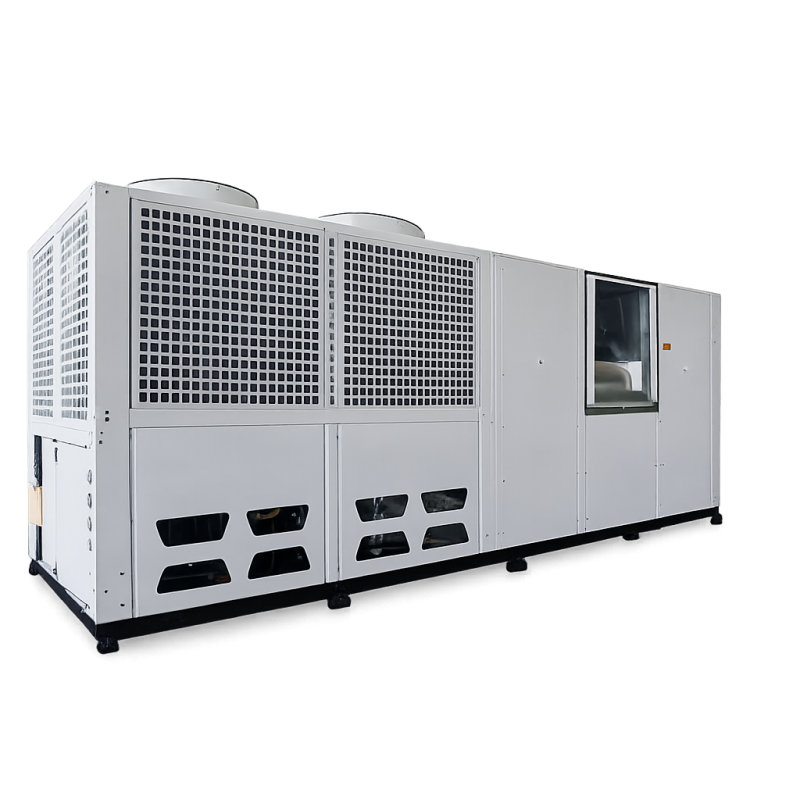

Rooftop 200 kW Air / Air industrial

✔ PERFORMANCE

Cooling capacity : 200 kW
Heating capacity : 205 kW
Power input (cooling) : 73.7 kW
Power input (heating) : 74.9 kW
Maximum power input : 103.2 kW

✔ ELECTRICAL

Power supply : 380V / 3Ph / 50Hz
Maximum current : 201 A

✔ COMPRESSORS

Type : Scroll inverter
Quantity : 3

✔ VENTILATION

Evaporator fan : inverter
Air flow : 38080 m³/h

Condenser fan : axial
Drive : direct

✔ HEAT EXCHANGERS

Evaporator : aluminium fins + inner grooved copper tubes

Condenser : aluminium fins + inner grooved copper tubes

✔ REFRIGERANT

Type : R32
Expansion : electronic expansion valve
Total charge : 42 kg

✔ OPERATING RANGE

Cooling : 16°C to 52°C
Heating : -10°C to 24°C

✔ DIMENSIONS

Length : 4600 mm
Width : 2277 mm
Height : 2461 mm

✔ OTHER

External static pressure : 450 Pa
Sound level : 79 dB(A)
Net weight : 2310 kg
