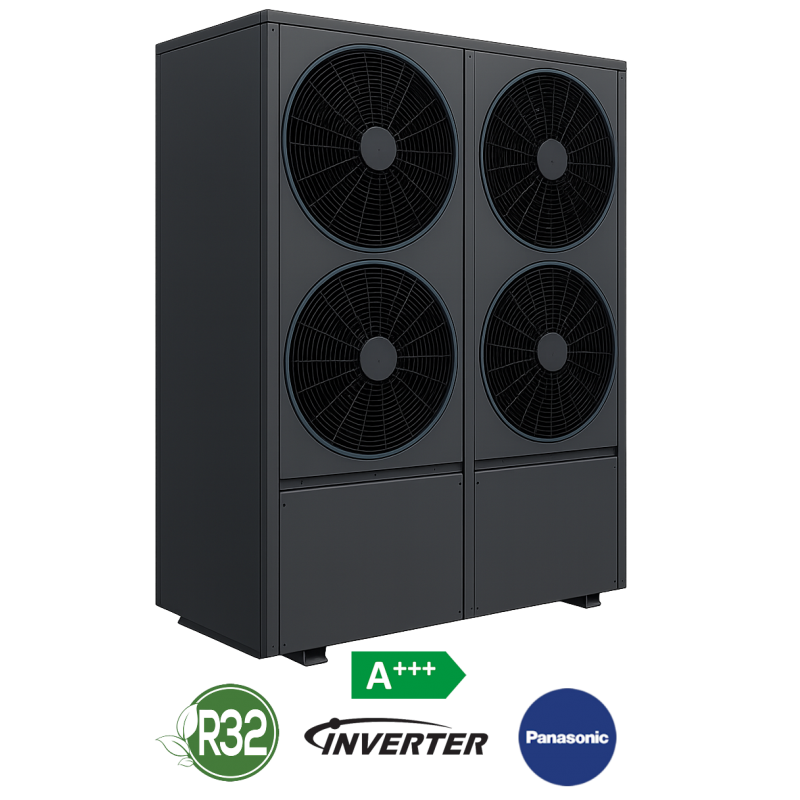

> AIR/WATER DC Inverter Heat Pump 42 kW R32 AEHDC42/R32 Flexpro Industry
Pac air/eau inverter 42kW View larger

AIR/WATER DC Inverter Heat Pump 42 kW R32 AEHDC42/R32 Flexpro Industry

AEHDC42-R32

New product

AIR/WATER DC Inverter Heat Pump 42 kW, R32 Refrigerant.

• Ready to operate
• Pre-charged with R32 refrigerant
• PANASONIC® DC INVERTER compressor
• Monobloc design
• No refrigerant piping required
• Easy installation on existing hydronic circuit
• Suitable for heating or cooling

Intended for professional buildings and commercial premises.

More details

7 960,00 €

Price including VAT + Shipping included

Add to wishlist

Alert me when price drops

Data sheet

Width1397mm
Depth504mm
Weight340kg
Height1990mm

More info

AEHDC42/R32 is a high capacity air to water heat pump designed for professional and collective installations. It delivers heating and cooling using a Panasonic DC Inverter compressor and R32 refrigerant.

Recommended applications

  • Replacement of oil or gas boilers in commercial and residential buildings
  • Multi-family housing and residential blocks
  • Offices, guest houses, small hotels and retail premises
  • Agricultural buildings and insulated workshops

Key features

  • Heating and cooling operation
  • Panasonic twin rotary DC Inverter compressor
  • R32 refrigerant
  • Built-in WiFi connectivity
  • Ready to control a domestic hot water tank via external three way valve
  • Robust IPX4-rated enclosure

Integration and commissioning

  • Direct connection to existing hydronic systems
  • Compatible with medium temperature radiators or underfloor heating depending on configuration
  • Leaving water temperature up to 60 °C
Performance
Heating 7 / 6 °C, water 30 / 35 °C capacity41.82 kW
Heating 7 / 6 °C, water 30 / 35 °C input power9.78 kW
Heating 7 / 6 °C, water 30 / 35 °C COP4.28
Heating 7 / 6 °C, water 40 / 45 C capacity34.27 kW
Heating 7 / 6 °C, water 40 / 45 C input power12.05 kW
Heating 7 / 6 °C, water 40 / 45 C COP2.84
Cooling 35 / 24 °C, water 12 / 7 °C capacity26.8 kW
Cooling 35 / 24 °C, water 12 / 7 °C input power11.53 kW
EER2.32
Conditions and components
Operating ambient temperature-22 °C to 43 °C
CompressorPanasonic twin rotary DC Inverter
RefrigerantR32
Electrical
Power supply400 V / 3 Ph / 50 Hz
Maximum input power16 kW
Hydraulics
Maximum leaving water temperature60 °C
Maximum water pressure3 bar
Hydraulic connections1 1 / 2 inches
Nominal water flow7.2 m³ / h
Condensate drain15 mm
Dimensions
Enclosure ratingIPX4
Dimensions H × W × D1397 × 504 × 1990 mm
Net weight340 kg
