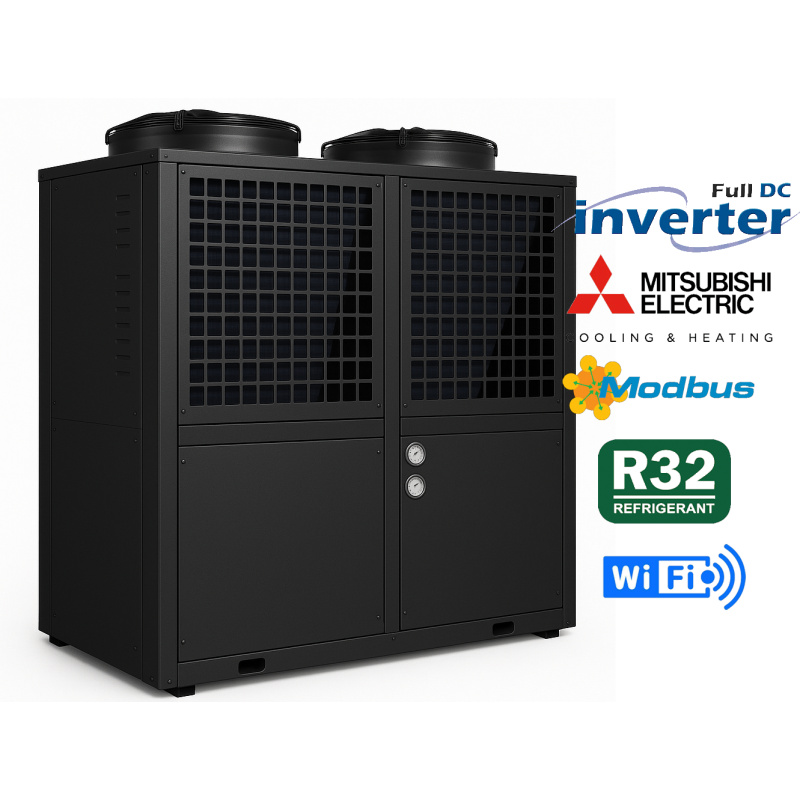

Swimming Pool Heat Pump – Full DC Inverter AEPDC/100-R32 - 100 kW (Max. 136 kW)
AEPDC/100-R32
New product
Full DC Inverter swimming pool heat pump
– Model: AEPDC/100-R32
– Nominal power: 100 kW – Max: 136 kW
– For pools from 200 to 250 m³
– Mitsubishi inverter compressor
– Wi-Fi
– 7” color touchscreen
– Modbus RS485
Delivery included – 3-year warranty – Unlimited Flexpro technical support
– Model: AEPDC/100-R32
– Nominal power: 100 kW – Max: 136 kW
– For pools from 200 to 250 m³
– Mitsubishi inverter compressor
– Wi-Fi
– 7” color touchscreen
– Modbus RS485
Delivery included – 3-year warranty – Unlimited Flexpro technical support
More info
Swimming Pool Heat Pump Full DC Inverter AEPDC/100-R32 100 kW (up to 136 kW)
The AEPDC/100-R32 heat pump features Full DC Inverter technology, offering powerful, quiet and energy-efficient heating. Ideal for pools from 200 to 250 m³.
Reliable performance
- Maximum output: 136 kW (Air 26 °C / Water 26 °C / RH 80%)
- Nominal output: 100 kW (Air 15 °C / Water 26 °C / RH 70%)
Key features
- Full DC Inverter – continuous modulation of compressor and fan
- Mitsubishi inverter compressor – high efficiency and durability
- Quiet operation – < 63 dB(A)
- 7” color touchscreen
- Wi-Fi remote control + integrated Modbus RS485 interface
- Titanium heat exchanger – superior corrosion resistance
Technical specifications
| Model | AEPDC/100-R32 |
|---|---|
| Recommended pool volume | 200 – 250 m³ |
| Power supply | 380V / 3Ph / 50Hz |
| Heating (Air 26 °C / Water 26 °C / RH 80%) | 136 ~ 32.8 kW |
| Power input | 17.91 ~ 1.87 kW |
| COP | 16.10 ~ 6.94 |
| Heating (Air 15 °C / Water 26 °C / RH 70%) | 100 ~ 24.3 kW |
| Power input | 18.59 ~ 2.94 kW |
| COP | 7.53 ~ 4.95 |
| Cooling (Air 35 °C / Water 27 °C) | 75 ~ 18.1 kW |
| Power input | 19.43 ~ 2.58 kW |
| EER | 6.68 ~ 3.63 |
| Nominal input | 18 kW |
| Nominal current | 33 A |
| Max power | 25 kW |
| Max current | 43 A |
| Air flow | 14 000 m³/h |
| Water flow | 36 m³/h |
| Hydraulic connection | 63 mm |
| Heat exchanger | Titanium |
| Expansion valve | EEV |
| Air flow direction | Vertical |
| Operating range | -15 °C to +43 °C |
| Heating temperature range | 15 °C to 40 °C |
| Cooling temperature range | 8 °C to 28 °C |
| Sound level | < 63 dB(A) |
| Net dimensions (L × W × H) | 1250 × 1080 × 1870 mm |
| Packing dimensions | 1300 × 1100 × 1950 mm |
| Net weight | 440 kg |
| Gross weight | 480 kg |
Delivery & Warranty
3-year warranty. Unlimited technical support by Flexpro.
