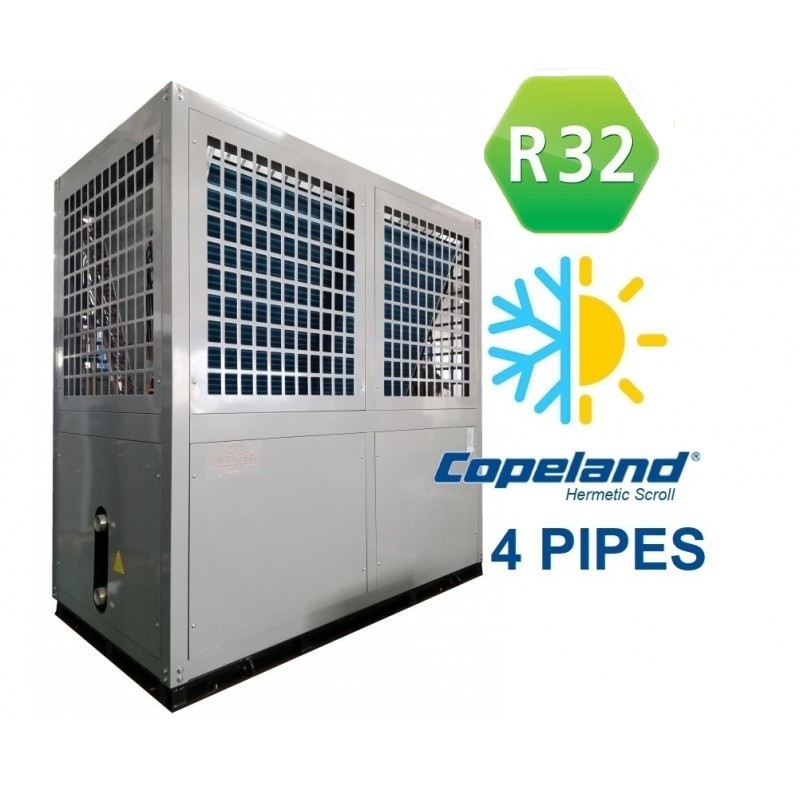

4 pipe Heat Pump 70 kW – Simultaneous Heating & Cooling – Model AEH4P/70

4-pipe heat pump AEH4P/70 – 70 kW of power for your HVAC projects

The AEH4P/70 heat pump is a high-efficiency 4-pipe solution designed to simultaneously provide heating and cooling in commercial buildings. Its robust design, dual scroll compressors, and quiet operation make it ideal for demanding professional installations.

✔️ Simultaneous heating and cooling

With two separate hydraulic circuits, this unit can heat some areas while cooling others. It is particularly recommended for hotels, hospitals, office buildings, schools, and collective housing.

✔️ Certified performance

• Nominal cooling capacity: 70 kW (20 USRT)
• Nominal heating capacity: 87 kW (25 USRT)
• Electric consumption: 24 kW
• Combined output (heating + cooling): 90 kW heating / 70 kW cooling
• Refrigerant: R32 – 2 x 10 kg charge
• Compressor type: Hermetic scroll (x2)

✔️ High-performance heat exchangers

• Chilled water exchanger: Shell & tube – 12.0 m³/h flow – DN50 – 45 kPa
• Hot water exchanger: Plate type – 15.4 m³/h flow – DN50 – 50 kPa

✔️ Optimized ventilation

• Axial fans – 2 units
• Total airflow: 26,600 m³/h
• Ventilation consumption: 1.5 kW

✔️ Power supply & installation

• Power supply: 3-phase – 380 V / 50 Hz
• Direct start
• Maximum power input: 34 kW
• Maximum current: 104 A

✔️ Dimensions & weight

• Dimensions (L x W x H): 2060 x 1100 x 2015 mm
• Net weight: 690 kg

Key advantages

• Simultaneous heating and cooling via 2 independent circuits
• Ideal for multi-use projects: hotels, healthcare, commercial buildings
• Compatible with Modbus (optional)
• Eco-friendly R32 refrigerant with low GWP

Delivered on pallet with plywood protection, professional installation required.
