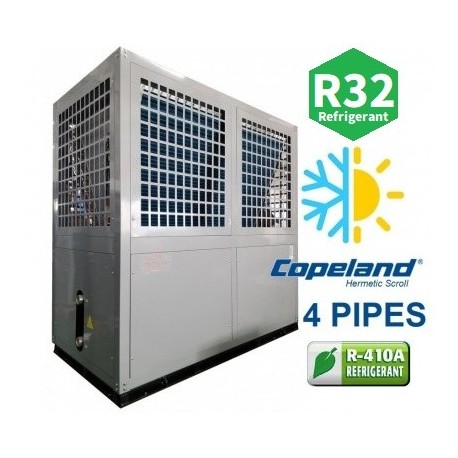

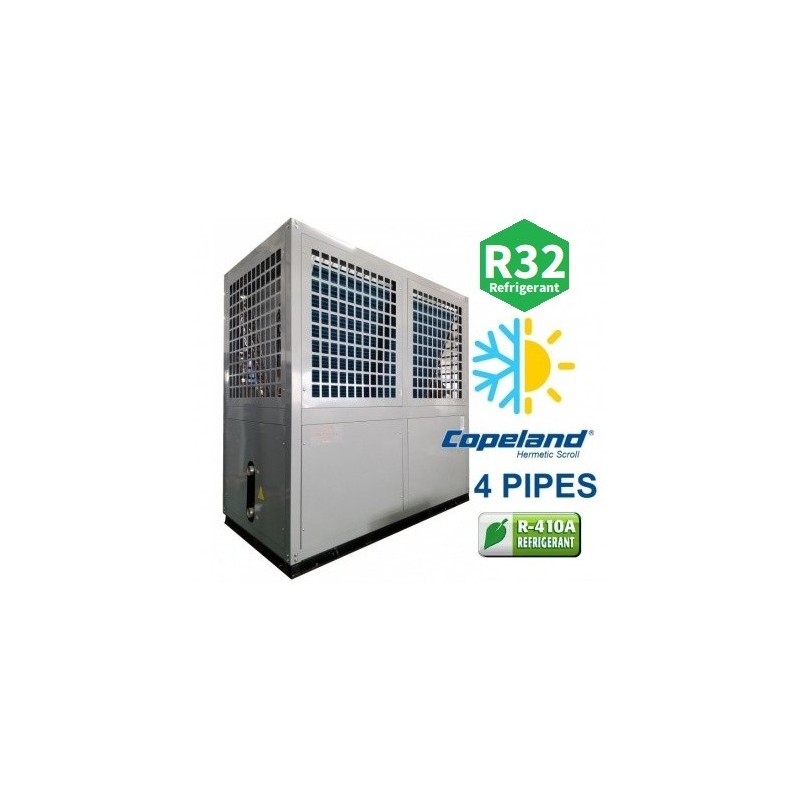

4 tubes air source heat pump 45kW View larger

4 pipe air source heat pump 45kW

New product

4-pipe air to water heat pump

  • Simultaneous heating and cooling
  • High performance scroll hermetic compressor (x2)
  • Optimization of the heat recovery function by integrated controller
  • R410A refrigerant or R32
  • Monobloc design
Price including all taxes + delivery at your address.

More details

8 500,00 €

Price including VAT + Shipping included

Add to wishlist

Alert me when price drops

Data sheet

Refrigerant GasR410A / R32

More info

Specifications:

Heating capacity: 48kW
Rated power: 14kW
USRT: 14
Btu/hr: 163,782

Cooling capacity: 45kW
Rated power: 14kW
USRT: 14
Btu/hr: 153 546

Capacity for simultaneous heating + cooling
Heating: 55kW
Cooling: 45kW
Rated power: 13kW
USRT: 16

Power supply: 380/3ph/50Hz

Maximum absorbed power: 20kW
Maximum power consumption: 37A

Compressor: Hermetic Scroll
Startup: Direct
Compressor quantity: 2
Refrigerant: R410A (2x5kg)

Number of circuits: 2

Heating part heat exchangers:
Type: Plate
Water flow: 9.5m3/h
Pressure losses: 47kPa
Hydraulic connections: DN40

Cooling part heat exchangers:
Type: Plate
Water flow: 7.8m3/h
Pressure losses: 42kPa
Hydraulic connections: DN40

Ventilation: Axial type
Quantity 2
Air flow: 17300m3/h
Power: 1100W

Dimensions: 1950 x 1050 x 2015 mm
Weight: 680kg
