> 4 pipe air source heat pump 30kW

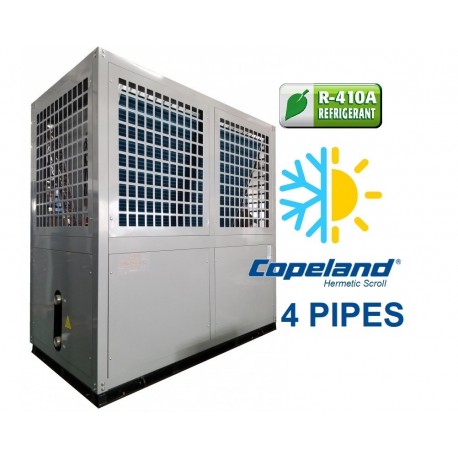

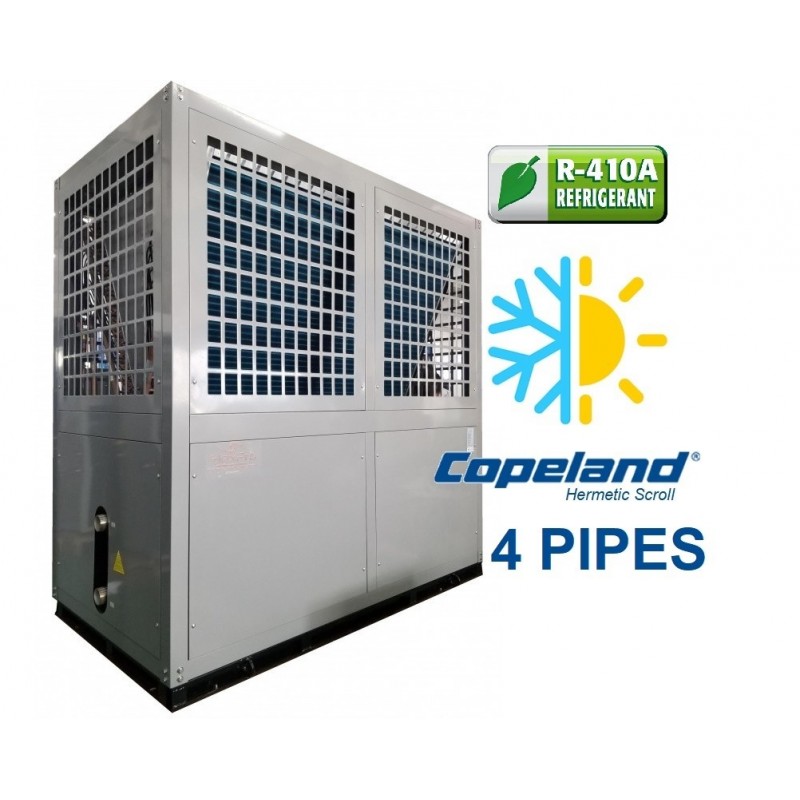

4 tubes air source heat pump 30kW View larger

4 pipe air source heat pump 30kW

AEH4P/30

New product

4-pipe air to water heat pump

  • Simultaneous heating and cooling
  • High performance scroll hermetic compressor (x2)
  • Optimization of the heat recovery function by integrated controller
  • R410A refrigerant
  • Monobloc design
Price including all taxes + delivery at your address.

More details

7 500,00 €

Price including VAT + Shipping included

Add to wishlist

Alert me when price drops

More info

Specifications:

Heating capacity: 32kW
Rated power: 10kW
USRT: 9
Btu/hr: 109,188

Cooling capacity: 30kW
Rated power: 10kW
USRT: 9
Btu/hr: 102,364

Capacity for simultaneous heating + cooling
Heating: 36kW
Cooling: 30kW
Rated power: 9kW
USRT: 10

Power supply: 380/3ph/50Hz

Maximum absorbed power: 14kW
Maximum power consumption: 25A

Compressor: Hermetic Scroll
Startup: Direct
Compressor quantity: 2
Refrigerant: R410A (2x3kg)

Number of circuits: 2

Heating part heat exchangers:
Type: Plate
Water flow: 5.2m3/h
Pressure losses: 42kPa
Hydraulic connections: DN40

Cooling part heat exchangers:
Type: Plate
Water flow: 6.2m3/h
Pressure losses: 47kPa
Hydraulic connections: DN40

Ventilation: Axial type
Quantity 2
Air flow: 11400m3/h
Power: 700W

Dimensions: 1950 x 1050 x 2015 mm
Weight: 650kg
