> Water source heat pump 7kw inverter (R290)
PAC eau eau inverter 7kw (R290) View larger

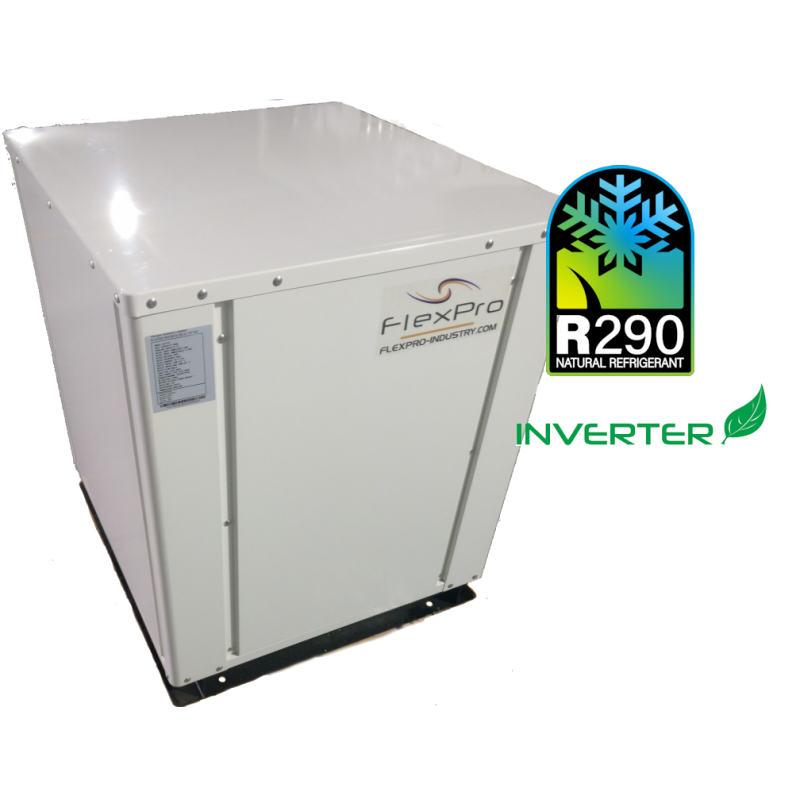

Water source heat pump 7kw inverter (R290)

New product

Geothermal dc inverter heat pump 7kW reversible
  • High capacity 7.0kW
  • R290 preloaded gas
  • High temperature 75°C
  • DC inverter technology
  • Compact
  • Monoblock design (easy installation)
  • Efficient and economical
  • Reversible hot/cold
Free shipping and all taxes inclusive for european union

More details

3 390,00 €

Price including VAT + Shipping included

Add to wishlist

Alert me when price drops

Data sheet

Refrigerant GasR290

More info

Main specifications:

Heating capacity: 7.0kW*
Rated power: 0.44-1.56kW
Running current: 2.1-7.2A
BTU/h max.: 23 800
C.O.P: 4.5-5

Cooling capacity: 3-9.5kW
Rated power: 0.50-1.83kW
Running current: 2.9-8.5A
BTU/h max.: 32 400
E.E.R: 5.2-5.7

Max input current: 11.0A
Rated power max: 2.4kW

Power supply: 220-240V/1ph/50hz

Outlet water temperature max.: 75°C
Outlet water temperature min.:   3°C

Compressor: 1x
Type: DC Inverter
Refrigerant gas: R290

Water piping connection: DN25 (1")
Water flow (heating): 1.63m3/h
Water flow (cooling): 2.30m3/h
Heating pressure drop: 50kpa
Cooling pressure drop: 50kpa

Net dimension: 900 x 853 x 885 mm
Net weight: 103kg


*Testing condition:
Water source side temperature: 0°C
Heating side temperature: 35°C
